HUADA · GKF
Pharmaceutical Peeler Centrifuge
A horizontal peeler platform with through-wall installation and cleaning-focused design options for pharmaceutical processing.
Horizontal filtration
What this machine is designed to do.
APIs, intermediates and other products requiring defined cleaning, segregation and containment strategies.
- Through-wall installation separates production and drive areas.
- Cleaning access and process-contact geometry support cleaning studies.
- CIP and specified sterilization options can be evaluated.
- Process recipes and interlocks support repeatable operation.
Working principle
The product side and drive side can be separated by a through-wall arrangement. Filtration, cake washing, dry spinning and peeler discharge are controlled as a batch sequence. Cleaning devices address the basket, door and discharge surfaces according to the agreed design. Steam sterilization is a separately specified option, not a standard assumption.
Selection boundaries
GMP suitability is a system and validation matter. A machine description does not establish FDA approval, sterile performance or an occupational exposure limit. Confirm the user requirement specification, cleaning validation and containment evidence.
01
Feed
Form a distributed cake.
02
Filter
Remove mother liquor.
03
Wash
Displace soluble impurities.
04
Spin
Reduce retained liquid.
05
Discharge
Transfer the solid product.
06
Regenerate
Prepare the filtering surface.
Conceptual batch-filtration sequence. Stage order, speeds and timing depend on the selected machine and approved recipe.

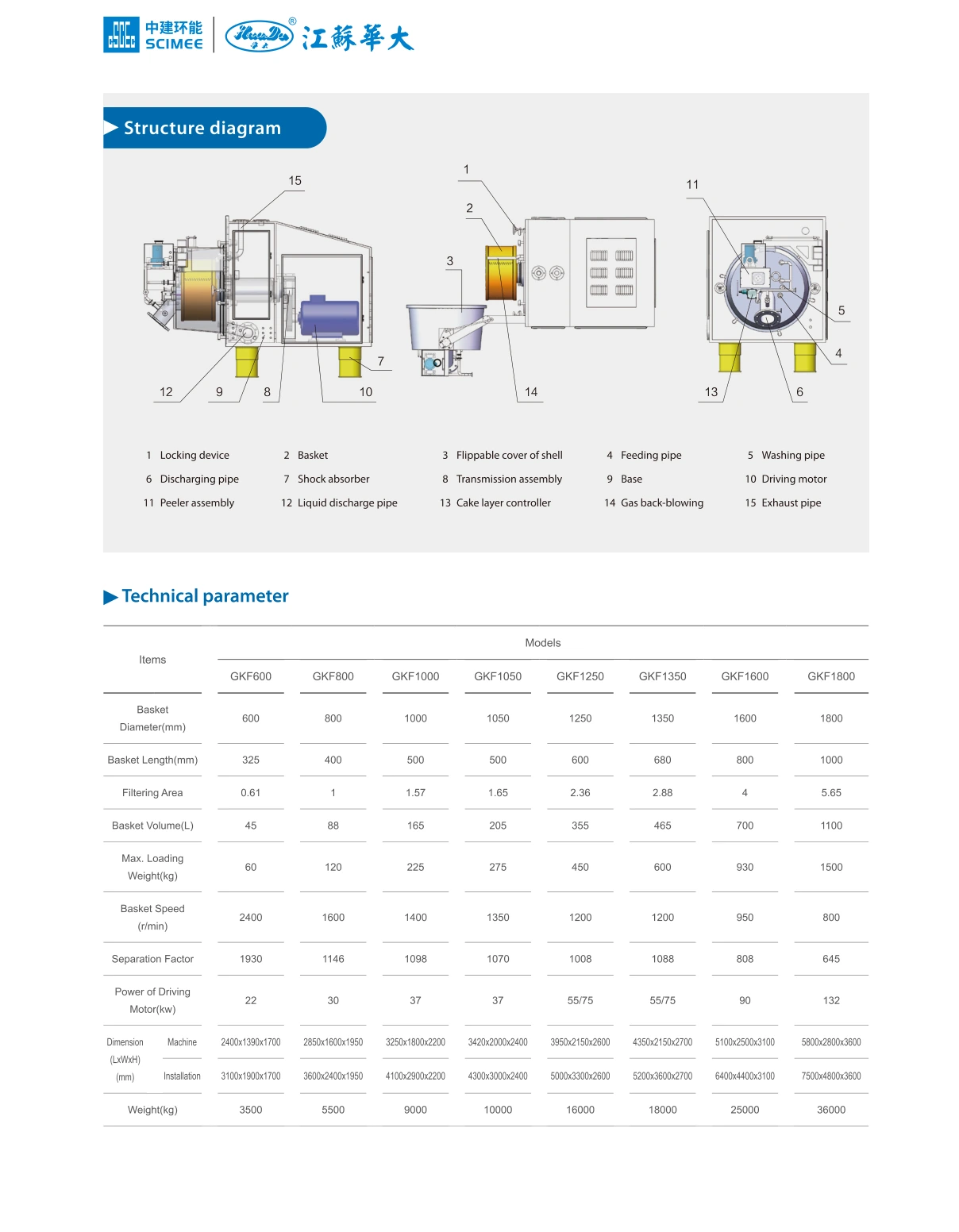

Technical specifications
Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.
Download catalogue · GKF · EN
HUADA catalogue · PDF 30–31 · Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.
HUADA · GKF
Configure for your process
Surface finish; gasket traceability; CIP coverage; optional SIP; sampling points; contained transfer; inerting; electrical classification; documentation and automation records.
Discuss your process
Questions before quotation
What determines the final capacity?
Feed properties, the required product quality and the complete operating cycle or continuous operating window. Catalogue dimensions and rated values do not replace a representative material test.
Can this be supplied as a complete system?
The scope can be discussed around feed handling, separation, washing where applicable, discharge and controls. The quotation should identify every included item and each buyer-supplied interface.
Are special materials and safety configurations standard?
They must be specified for the material, site and selected model. Ask for the exact contact materials, seals, electrical requirements and supporting documents in the proposal.
CONFIRM THE PROCESS FIT
What should the trial establish?
Agree the feed envelope, product target and complete equipment boundary. Compare alternatives if the material does not suit this principle.
