HUADA · PSB-P
Low Temperature Extraction Centrifuge
A basket-based arrangement for soaking extraction followed by solid-liquid separation, with a catalogue low-temperature design option.
Extraction
What this machine is designed to do.
Approved botanical and other extraction processes requiring controlled contact between solids and extraction liquid.
- Extraction and dewatering can share a basket arrangement.
- Filter bags support contained solids handling.
- Temperature-compatible components can be specified.
- Recipes can coordinate soaking, liquid handling and spinning.
Working principle
The process combines soaking or extraction with centrifugal removal of liquid from the solids held in the filter bag. Temperature, residence time, solvent properties and liquid-to-solid ratio influence extraction. The catalogue describes a −40°C design option; the complete operating envelope must be agreed for the actual solvent and configuration.
Selection boundaries
Solvent selection, vapor handling, electrical classification, seals and low-temperature materials require a project-specific assessment. The machine is not automatically suitable for every solvent, pressure or temperature combination.

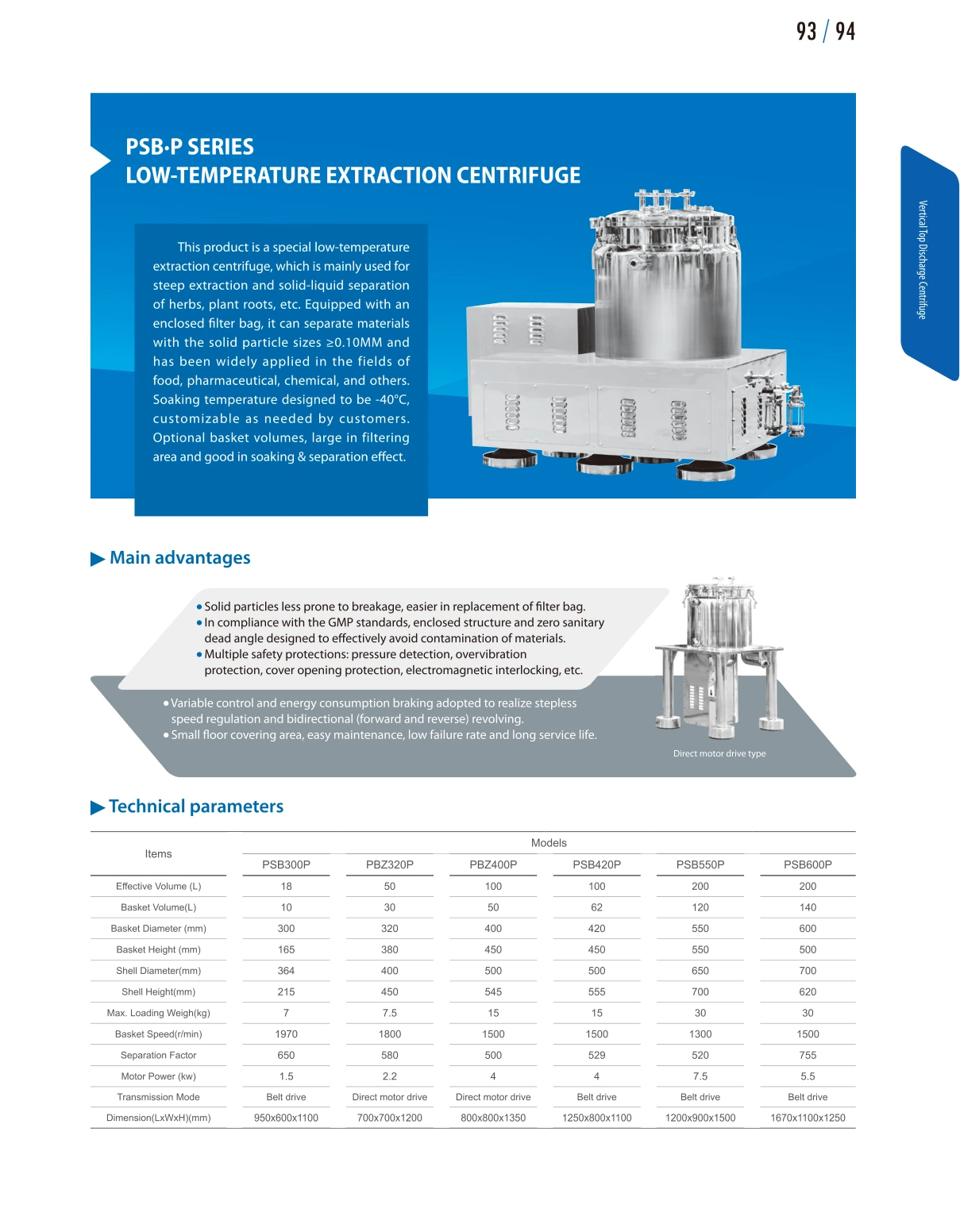

Technical specifications
Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.
Download catalogue · PSB-P · EN
HUADA catalogue · PDF 50 · Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.
HUADA · PSB-P
Configure for your process
Temperature-rated seals and bearings; insulation; solvent-compatible materials; inerting; vapor handling; controls and solvent-recovery interfaces.
Discuss your process
Questions before quotation
What determines the final capacity?
Feed properties, the required product quality and the complete operating cycle or continuous operating window. Catalogue dimensions and rated values do not replace a representative material test.
Can this be supplied as a complete system?
The scope can be discussed around feed handling, separation, washing where applicable, discharge and controls. The quotation should identify every included item and each buyer-supplied interface.
Are special materials and safety configurations standard?
They must be specified for the material, site and selected model. Ask for the exact contact materials, seals, electrical requirements and supporting documents in the proposal.
CONFIRM THE PROCESS FIT
What should the trial establish?
Agree the feed envelope, product target and complete equipment boundary. Compare alternatives if the material does not suit this principle.
