HUADA · PLD

Bag-Pulling Bottom Discharge Centrifuge

Automated batch filtration with scraper discharge and a bag-pulling step to release residual cake from the filter cloth.

Request a quote Download catalogue PDF · EN ↗

Vertical filtration

What this machine is designed to do.

Batch crystal recovery; repeated product campaigns; processes where residual heel affects filtration or cleaning.

Bag movement addresses residual cake after scraper discharge.
Bottom discharge connects to a suitable receiving hopper or conveyor.
Open-cover and insulated variants are described in the catalogue.
Recipes can coordinate feed, wash, spin, scraper movement and cloth regeneration.

Working principle

Slurry enters the rotating basket and forms a cake on the filter cloth. Mother liquor passes through the cloth and basket. The cycle can include cake washing and dry spinning. After the main cake is scraped out at the specified discharge speed, the bag-pulling mechanism moves the cloth to release remaining solids. Each phase is sequenced by the control system.

Selection boundaries

Cake release depends on adhesion, particle properties and cloth selection. A catalogue removal percentage is not a universal process guarantee. Confirm recoverable product, filtrate clarity and the complete cycle during trials.

Feed

Form a distributed cake.

Filter

Remove mother liquor.

Wash

Displace soluble impurities.

Spin

Reduce retained liquid.

Discharge

Transfer the solid product.

Regenerate

Prepare the filtering surface.

Conceptual batch-filtration sequence. Stage order, speeds and timing depend on the selected machine and approved recipe.

Technical specifications

Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.

Model	Basket Ø (mm)	Basket volume (L)	Load (kg/batch)	Motor (kW)
PLD800	800	100	130	7.5 / 11
PLD1000	1000	180	230	15
PLD1250	1250	400	500	22
PLD1600	1600	800	1,000	37 / 45
PLD1800	1800	1,100 / 1,250	1,350 / 1,500	55

Download catalogue · PLD · EN

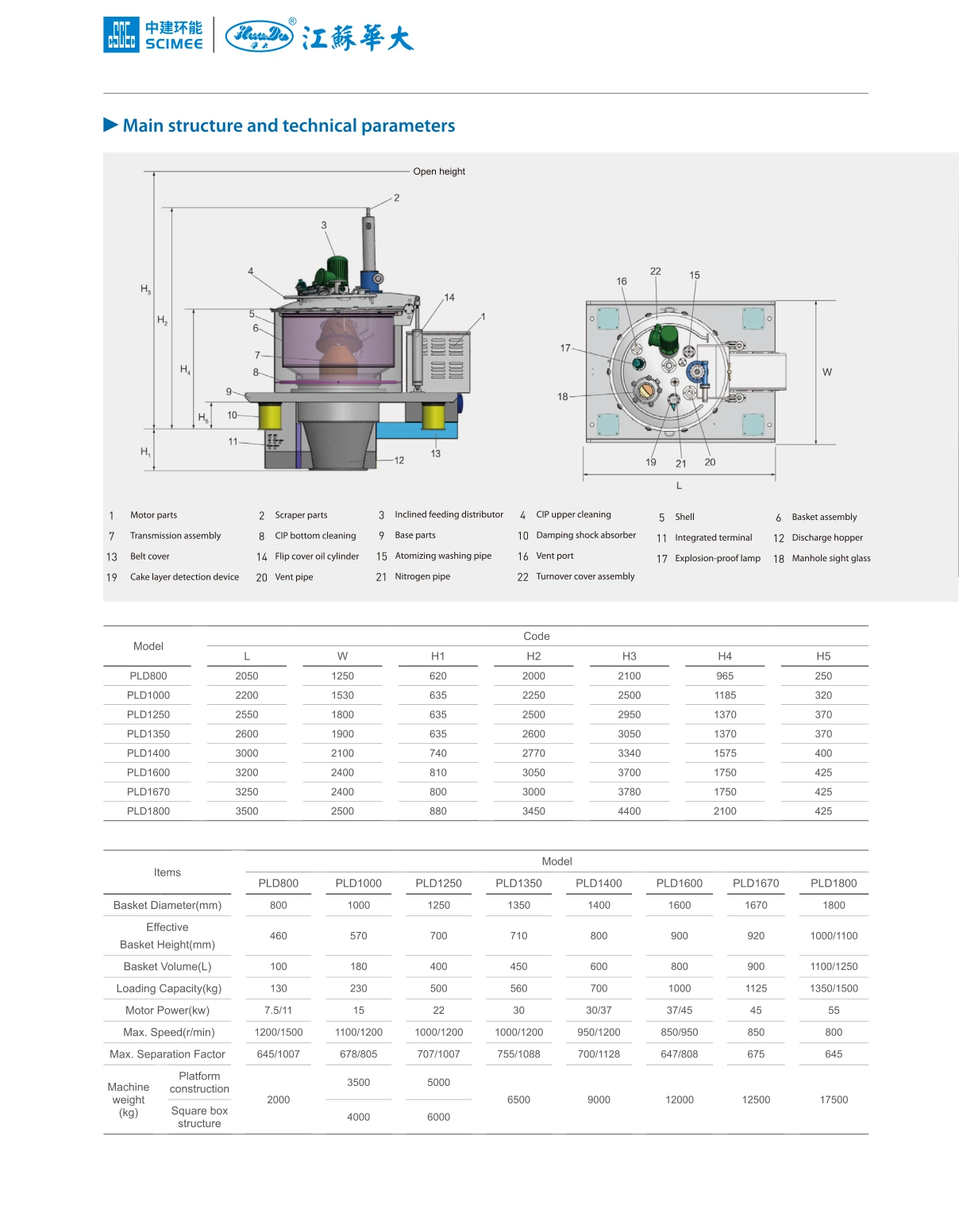

HUADA catalogue · PDF 23–25 · Catalogue reference data. Final configuration, capacity and performance depend on the material and agreed operating conditions.

HUADA · PLD

Configure for your process

Contact material and corrosion protection; cover arrangement; cloth and backing screen; wash distribution; containment; nitrogen and oxygen monitoring where required; motor and electrical area rating; CIP; discharge connection; control interfaces.

Discuss your process

Questions before quotation

What determines the final capacity?

Feed properties, the required product quality and the complete operating cycle or continuous operating window. Catalogue dimensions and rated values do not replace a representative material test.

Can this be supplied as a complete system?

The scope can be discussed around feed handling, separation, washing where applicable, discharge and controls. The quotation should identify every included item and each buyer-supplied interface.

Are special materials and safety configurations standard?

They must be specified for the material, site and selected model. Ask for the exact contact materials, seals, electrical requirements and supporting documents in the proposal.

CONFIRM THE PROCESS FIT

What should the trial establish?

Agree the feed envelope, product target and complete equipment boundary. Compare alternatives if the material does not suit this principle.

Compare separation technologies Prepare the trial brief
